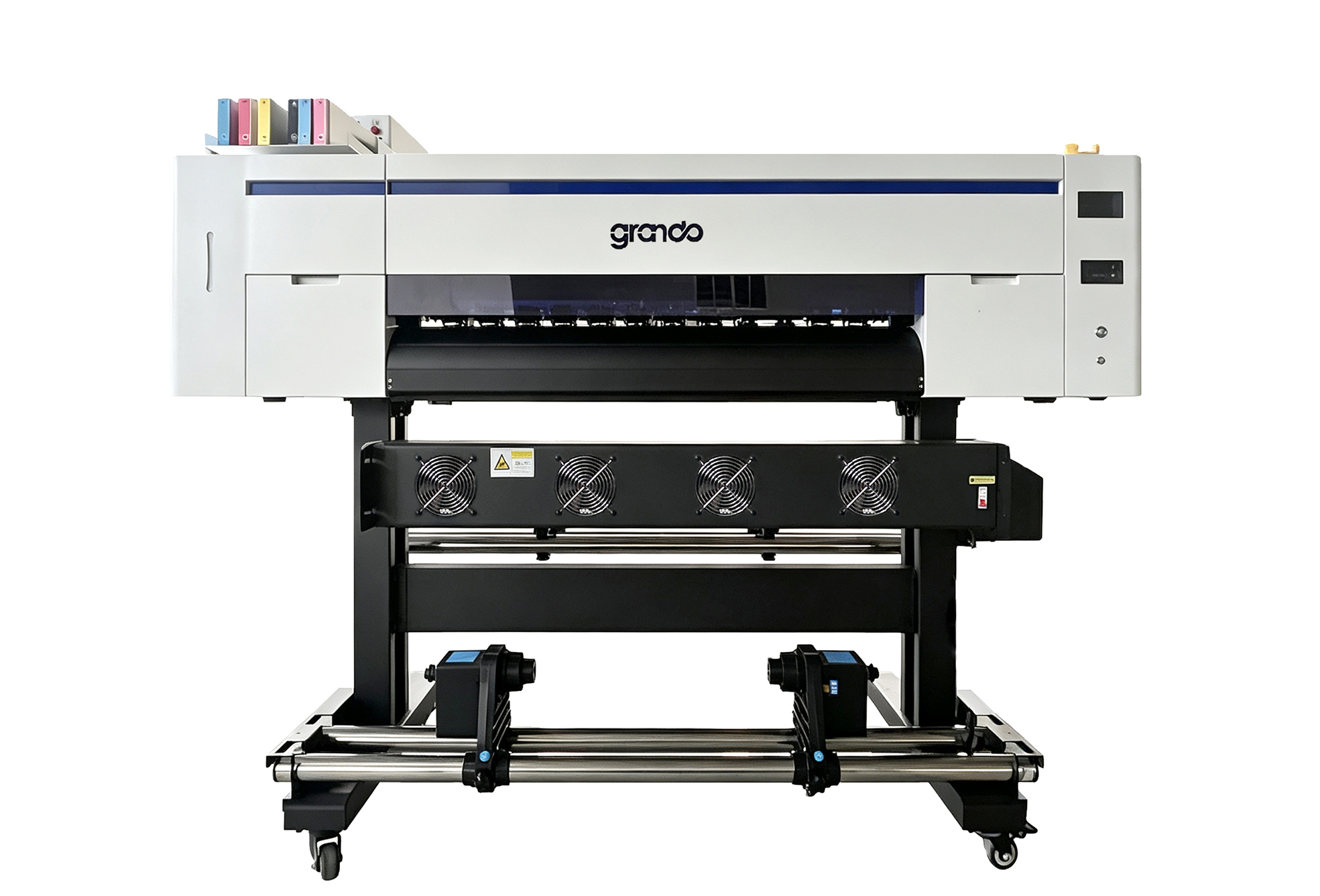

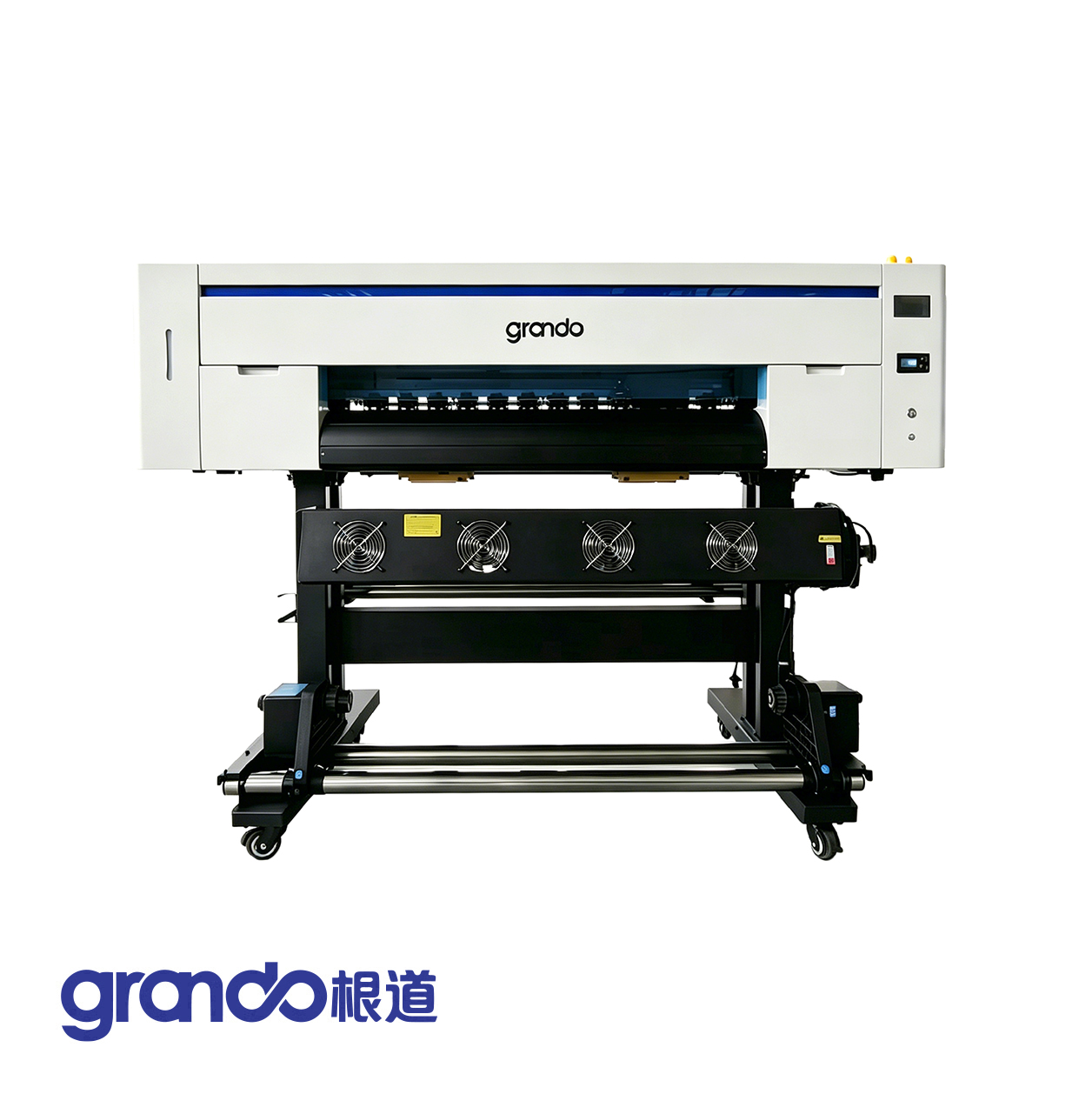

GD-1051 Sublimation & Water Based & Eco Solvent Printer with EPSON F1080 Print Head

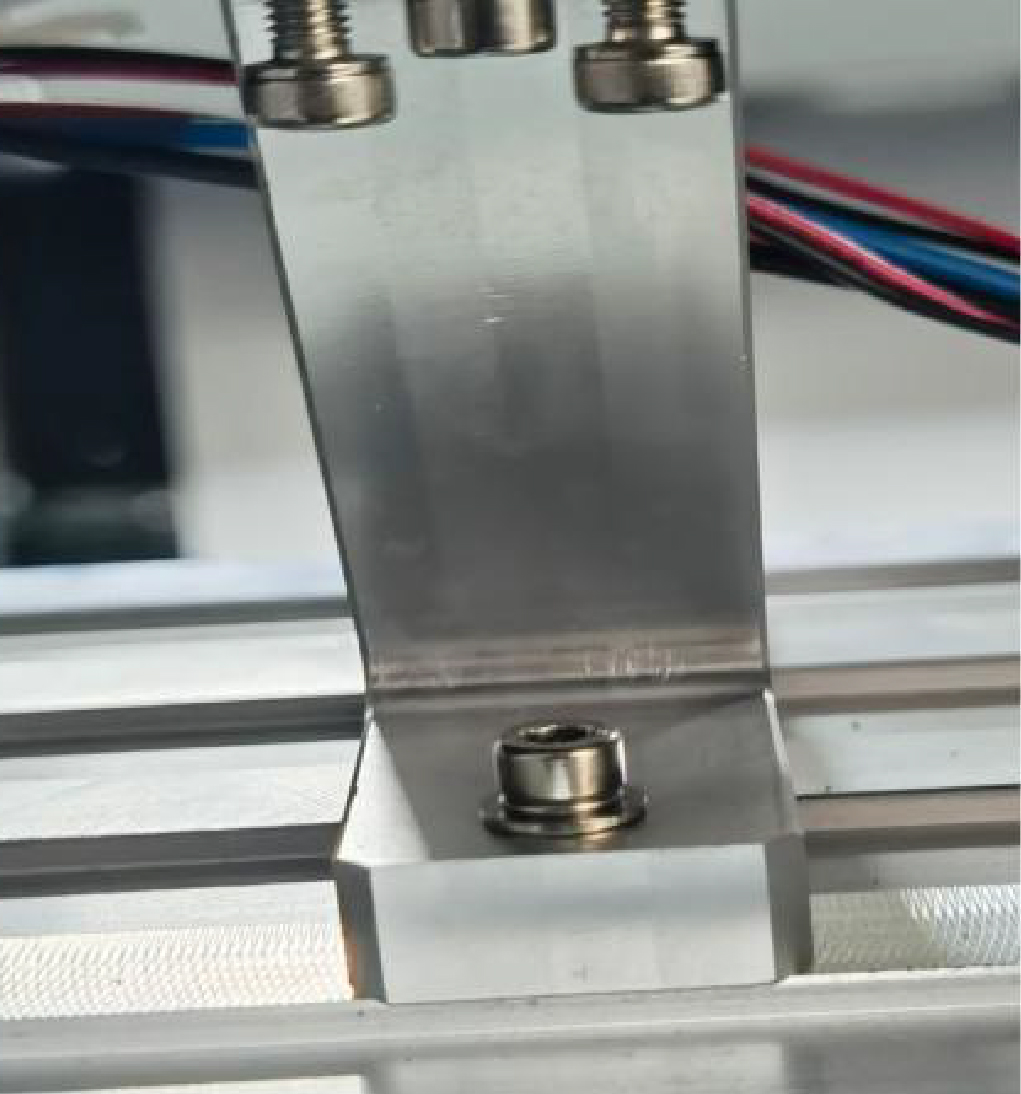

Bottom Support

End Brackets upgraded to aluminum parts

Upper Beam Bracket

Made of aluminum material for enhanced structural strength.

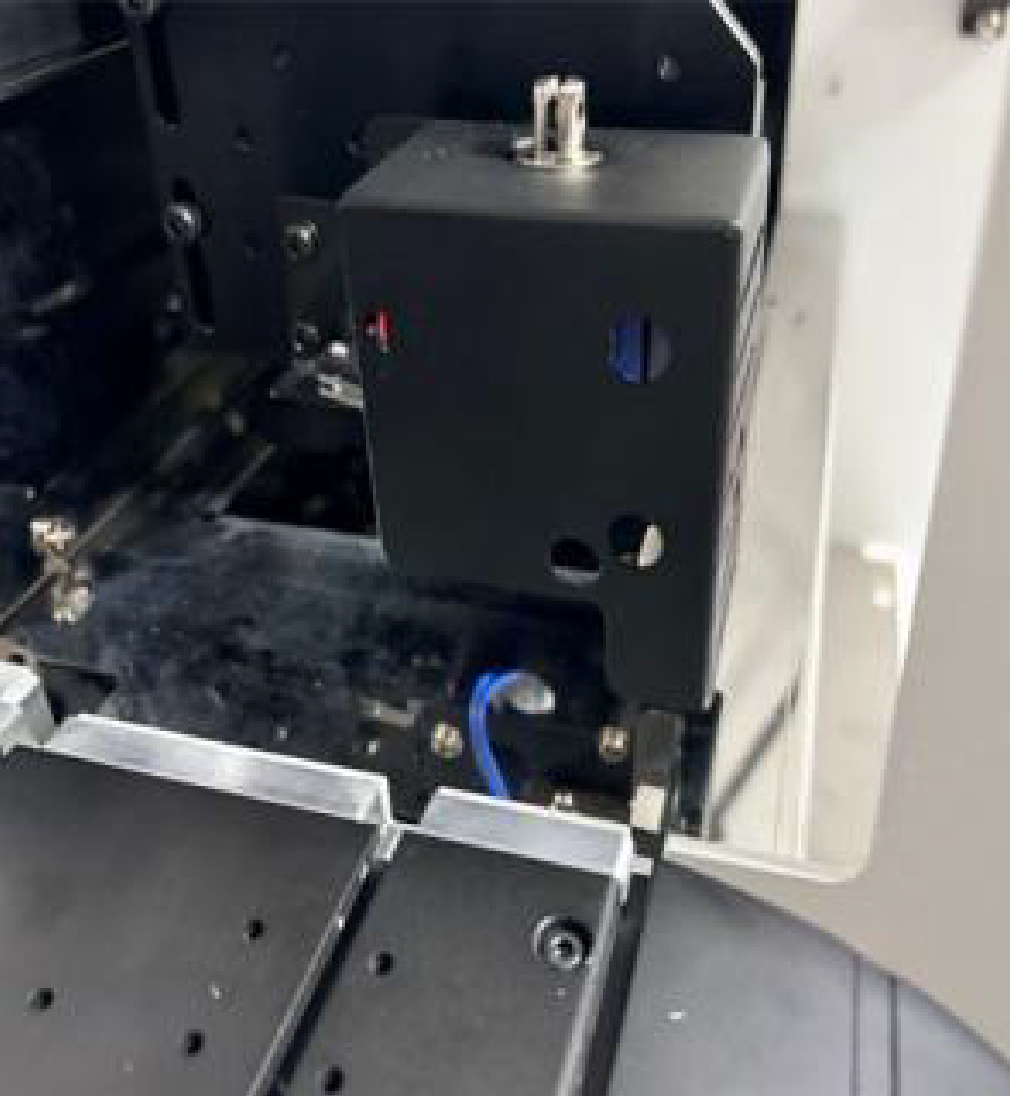

Automatic Cutting Function

Built-in automatic cutting knife, improving operational efficiency and convenience.

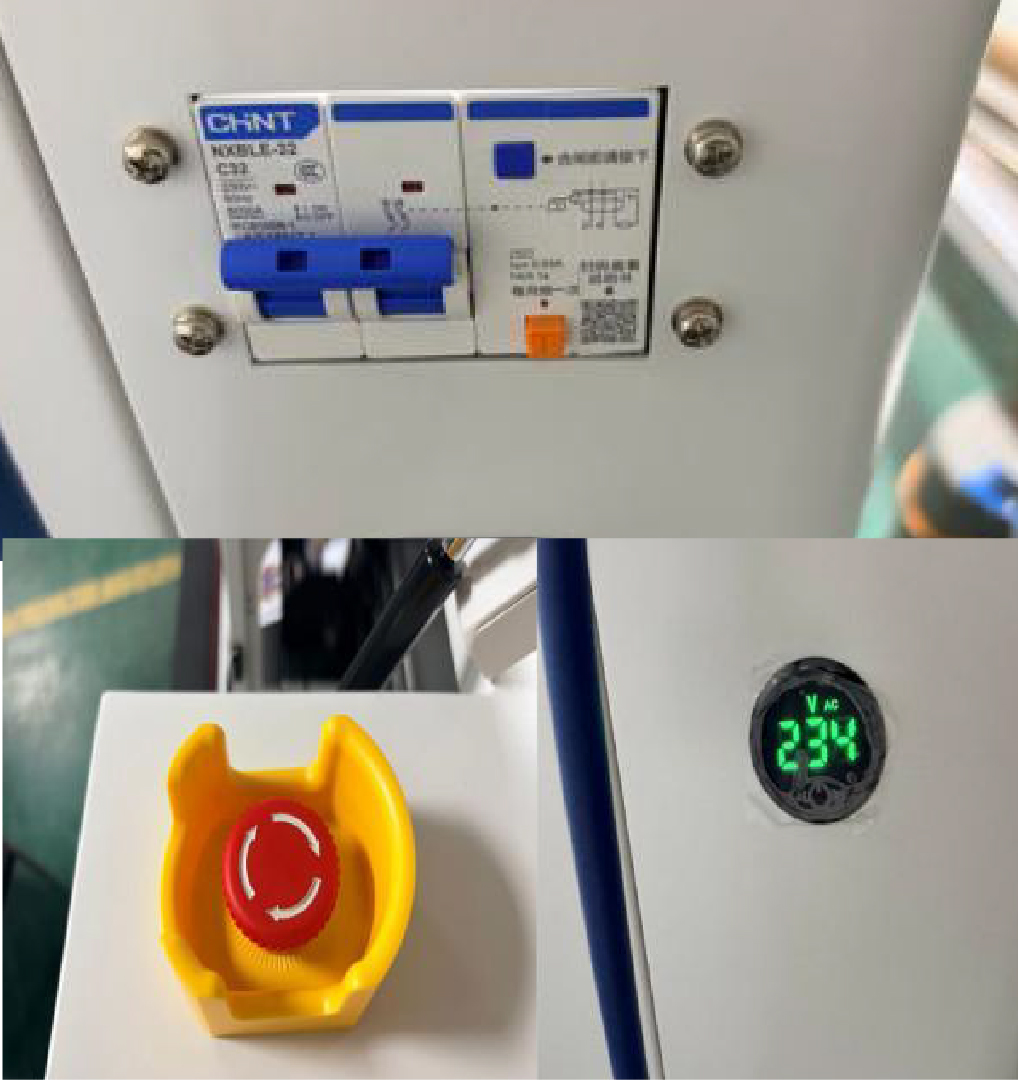

Machine Safety Protection

Equipped with leakage protection switch, emergency stop button and 220V voltmeter.

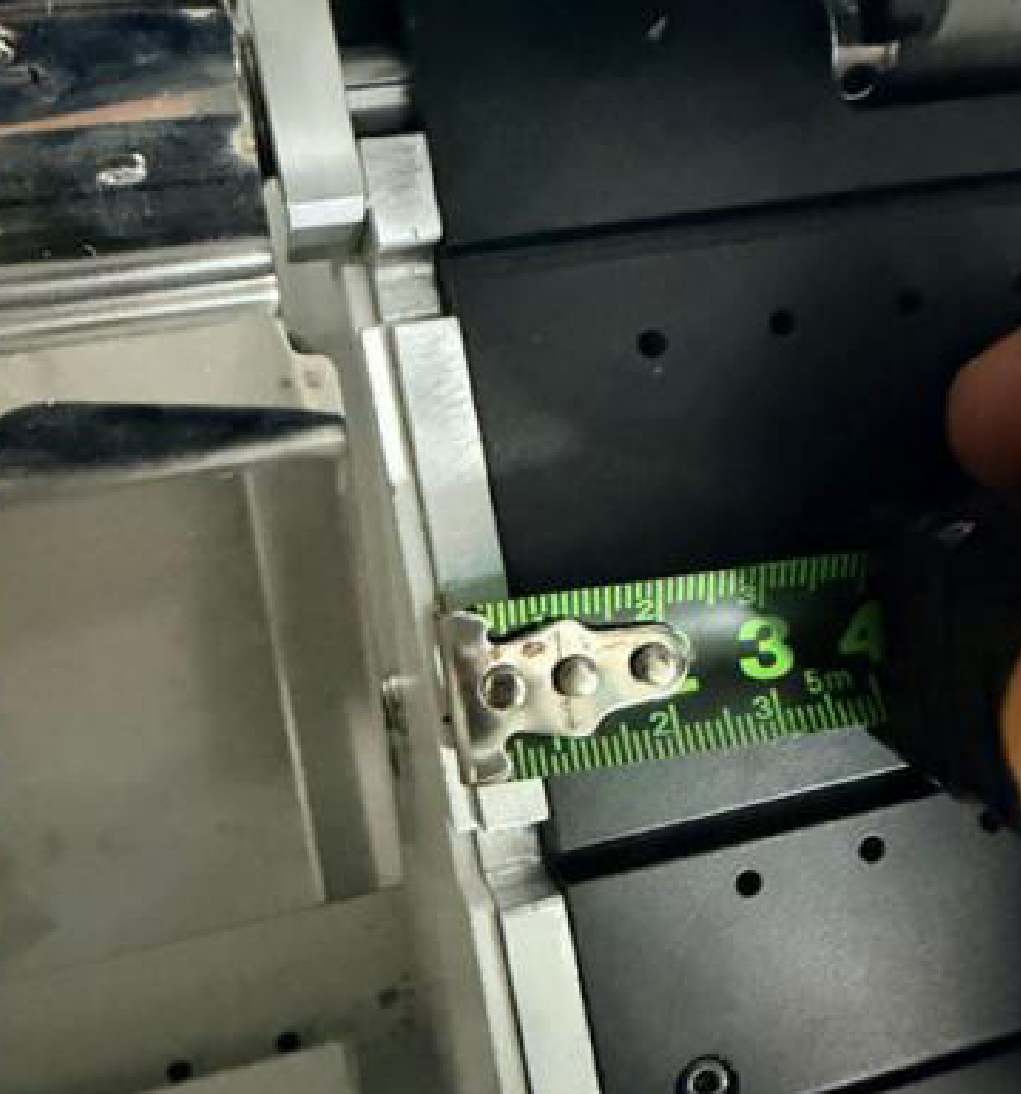

Convenient Carriage Operation

Carriage supports manual lifting or lowering, accommodate different material thicknesses.

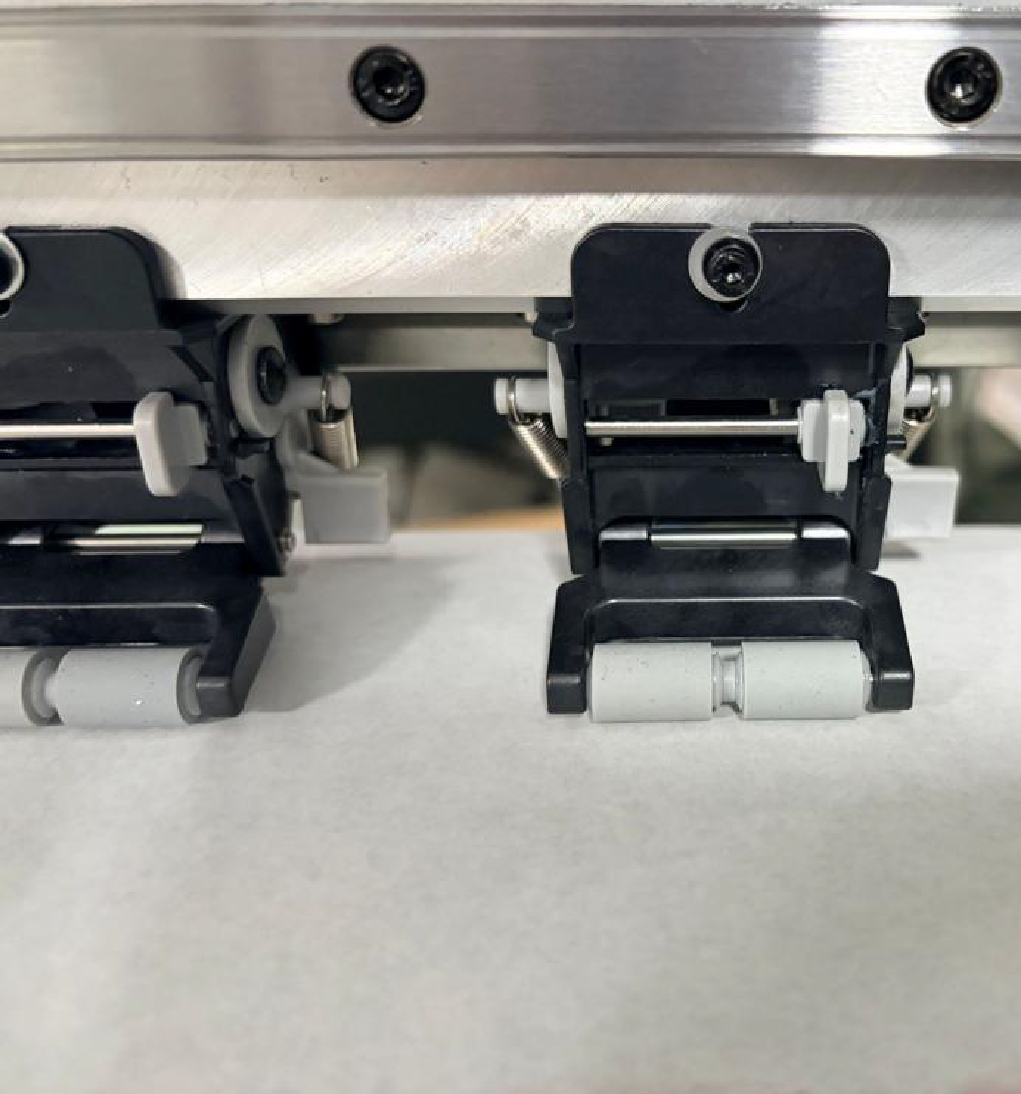

Pressure Roller Assembly

Designed with liftable and adjustable pressure rollers to meet various working conditions.

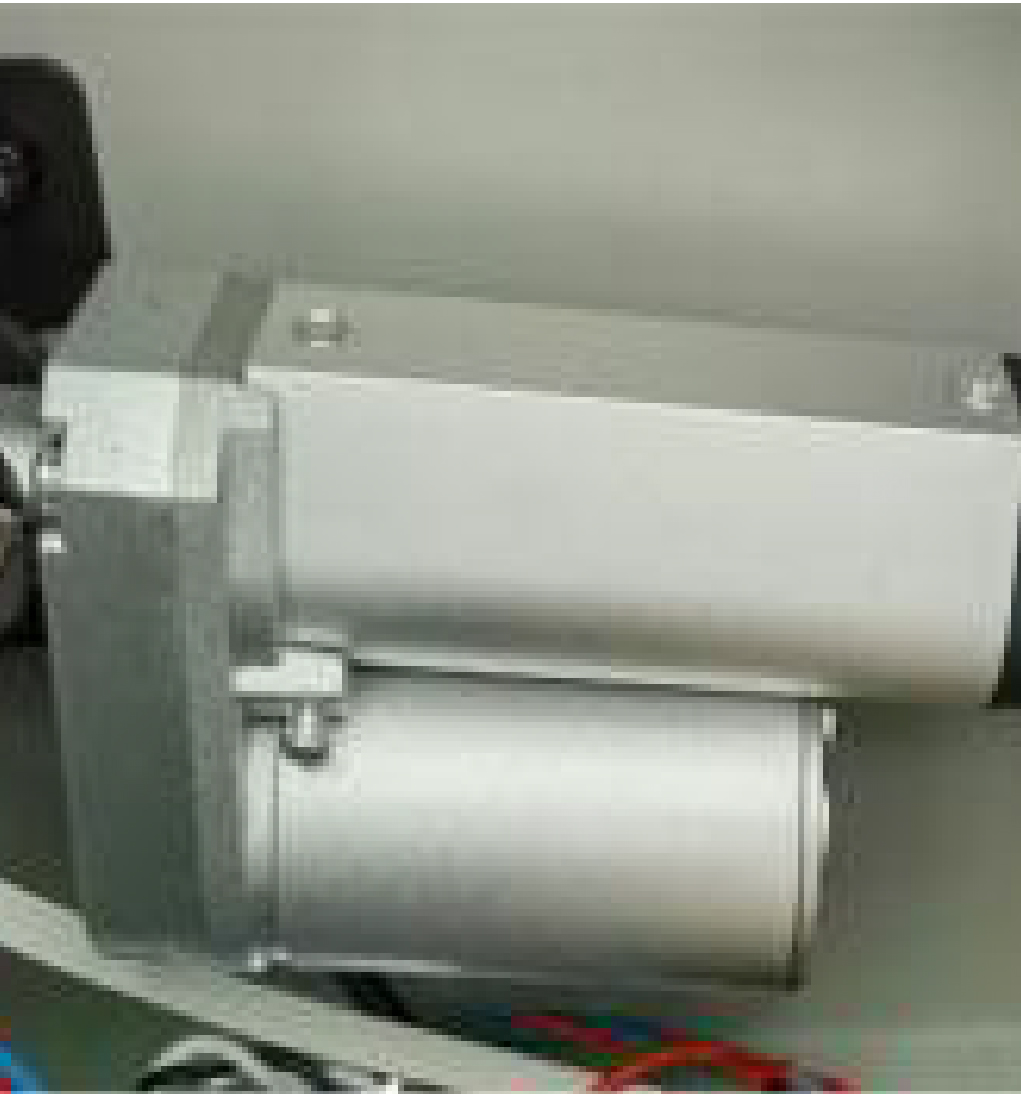

Electric Actuator

Ensures smooth and stable paper pressing during machine operation, easy to operate.

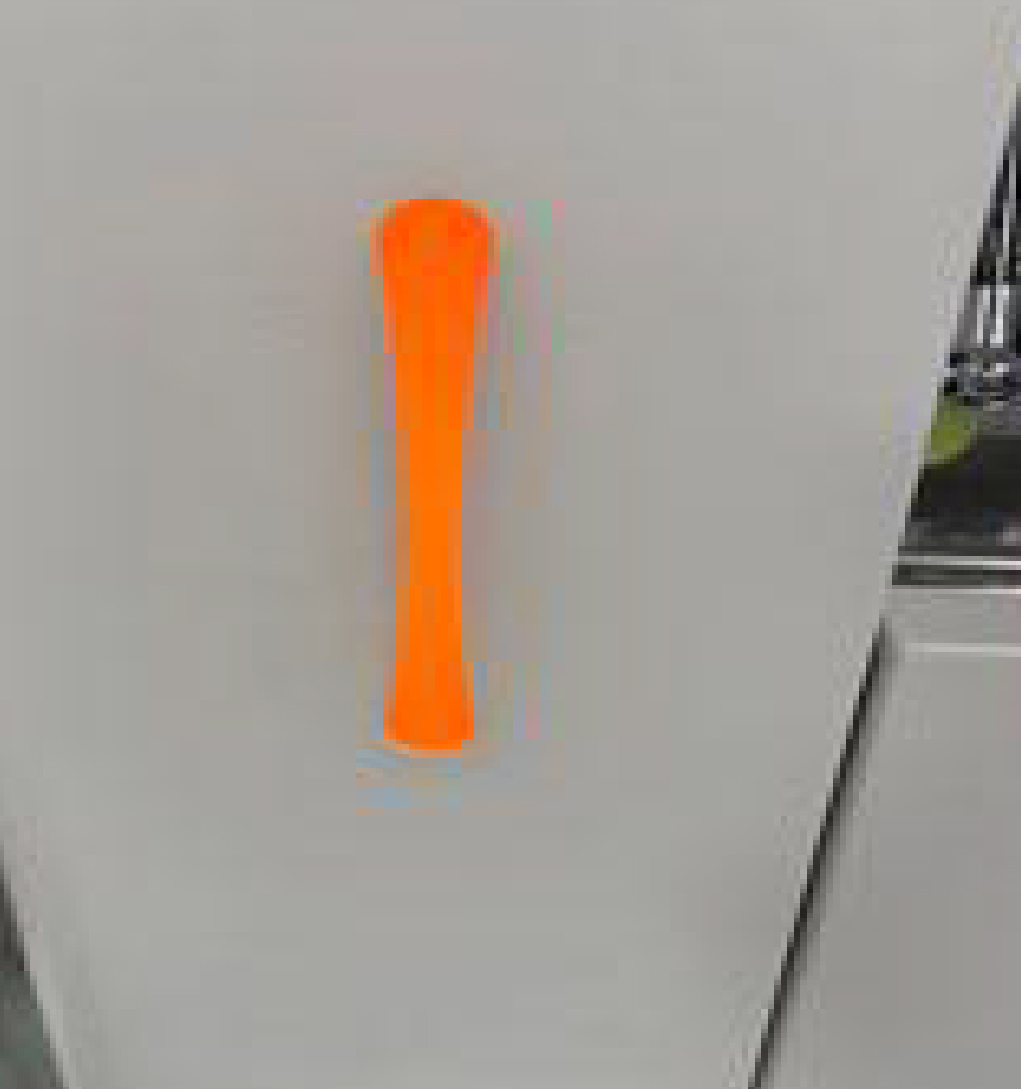

Status Monitoring

Three-color indicator lamp visually displays machine operating states.

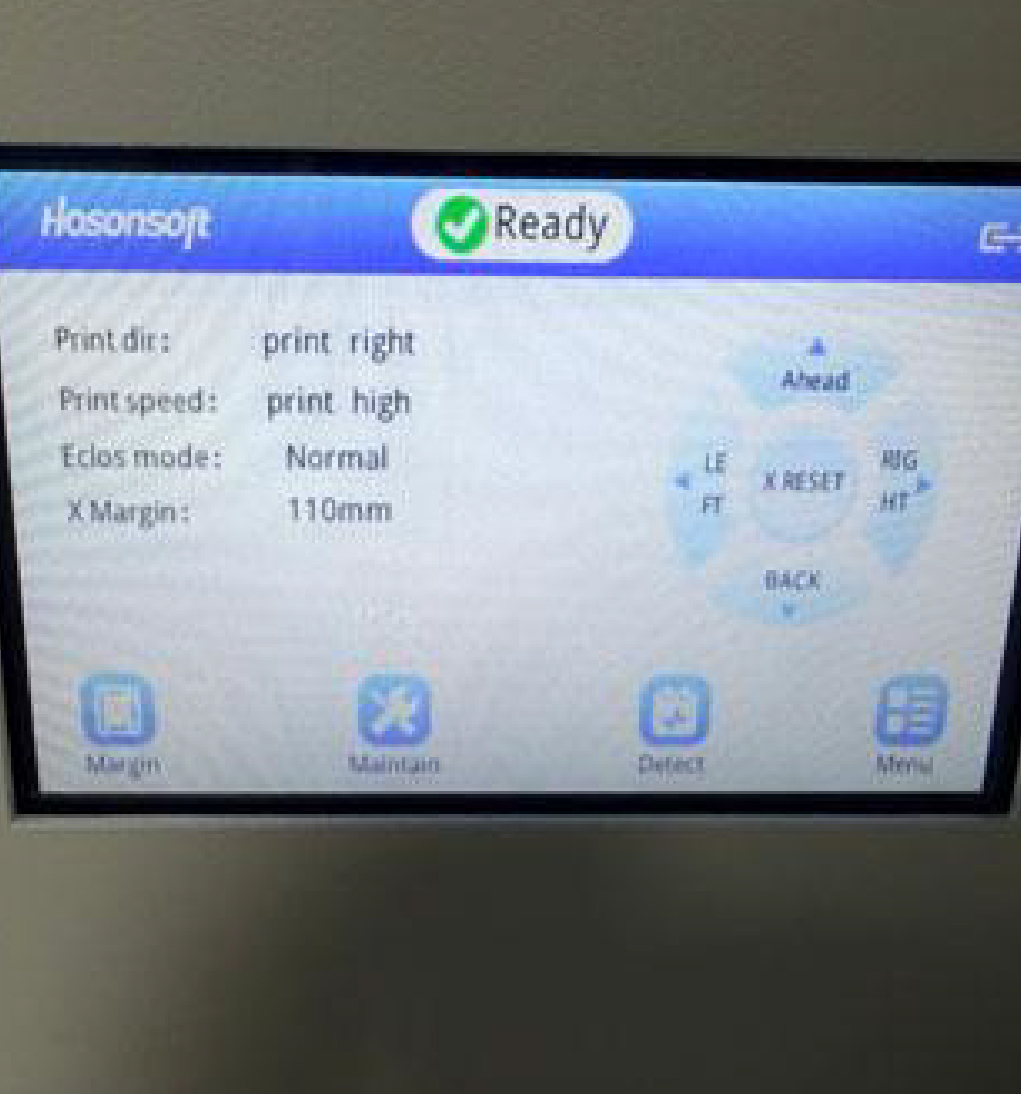

Machine Control Panel

Touchscreen interface for intuitive and convenient operation.

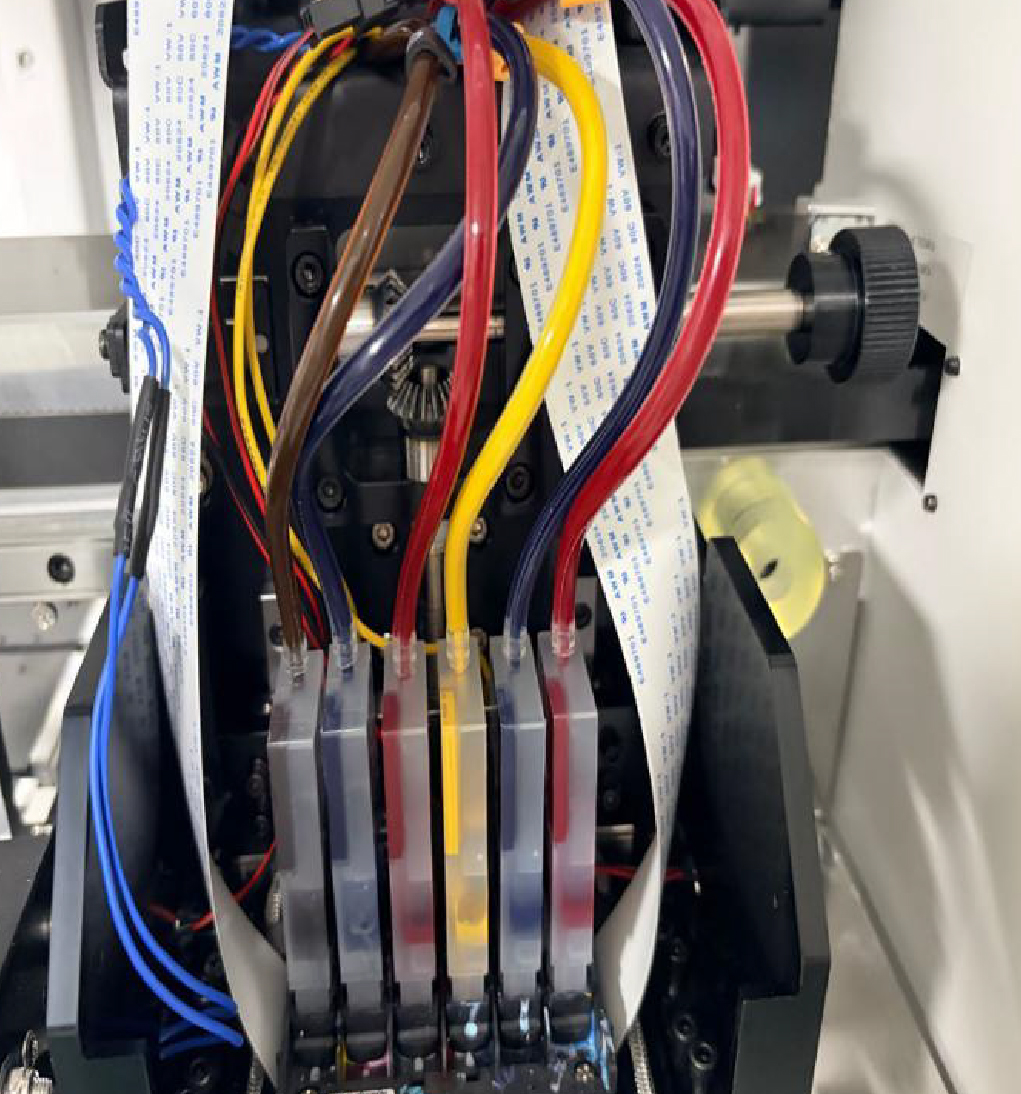

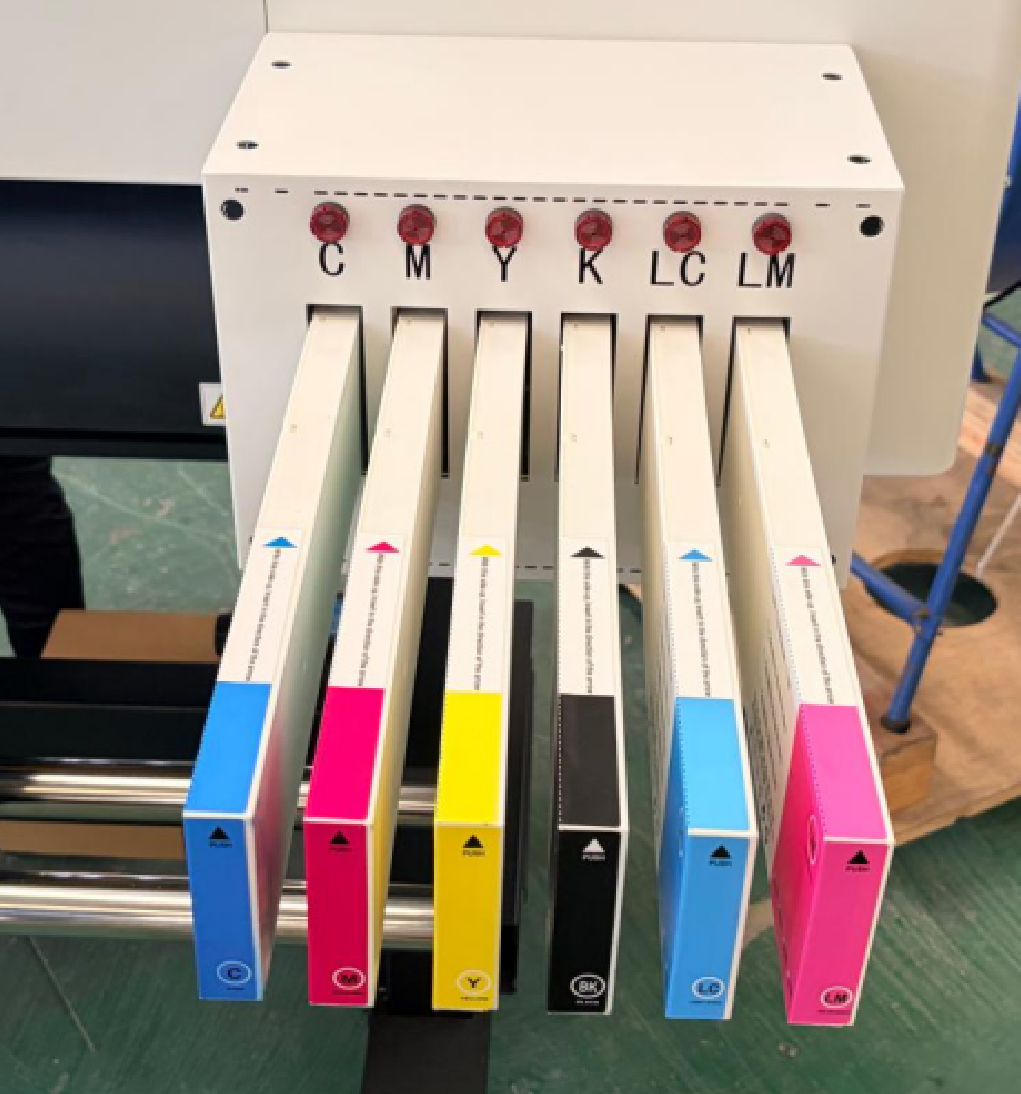

Ink System

Continuous ink supply system with chip encryption to ensure ink usage security.

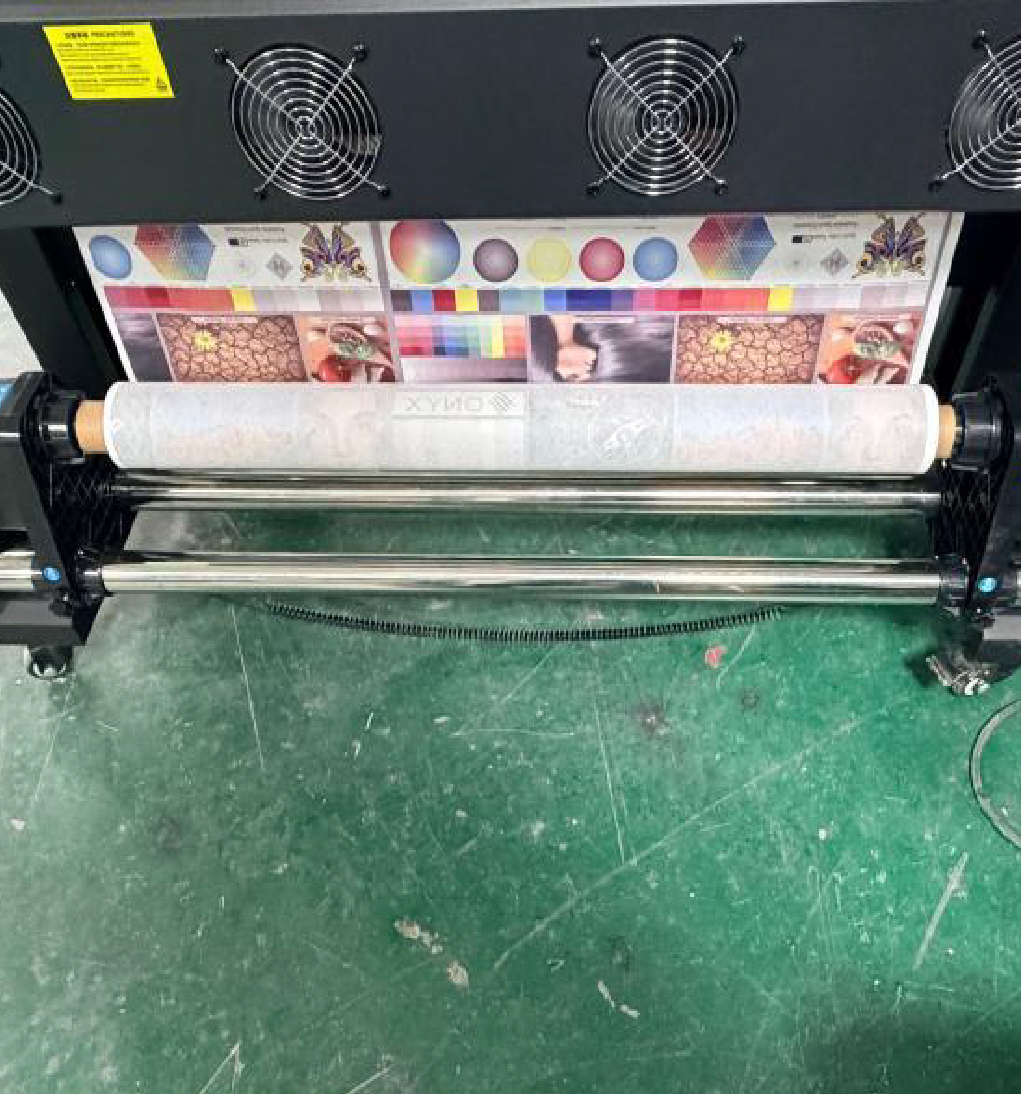

Dual-Motor Take-up Unit

Improves media take-up efficiency and stability.

Print Head

EPSON F1080*1

Printing Technology

Micro Piezo Inkjet Printing

Print Media

Heat Transfer Paper/ Eco solvent media, depends on applications

Print Width

1050mm

Media Width

1100mm

Ink Cartridges

440ML  Ink Cartridge With Chips ( Sublimation Ink / Eco Solvent Ink / Water Based   Ink )

Power

2200w

Print Resolution

360x720dpi     360x1080dpi       360x1440dpi

Speed

4pass   15m²/h      6pass 10m²/h      8pass 7m²/h

Drying System

External Infrared Drying System

Interface

Gigabit Ethernet Port

Input Voltage

AC220V   ±5 %，10A，50Hz ±1

Operating System

Win7   64 bit/Win10 64 bit

Net Weight

220kg

Net Size

2054X1409X750mm

Environment

Power on

Temperature:   15℃-32℃,

Humidity:   relative humidity 35%- 80% (no condensation)

Power off

Temperature:   5℃-40℃,

Humidity:   relative humidity 20%- 80% (no condensation)

Accessories

Stand, Media Take-up & Feeder, Infrared Drying System, Cold Air Drying System,   Bulk Ink Supply System, Ink Damper, Media Pressors, Power Cable, Media   Hold-down Plate, USB Flash Drive
