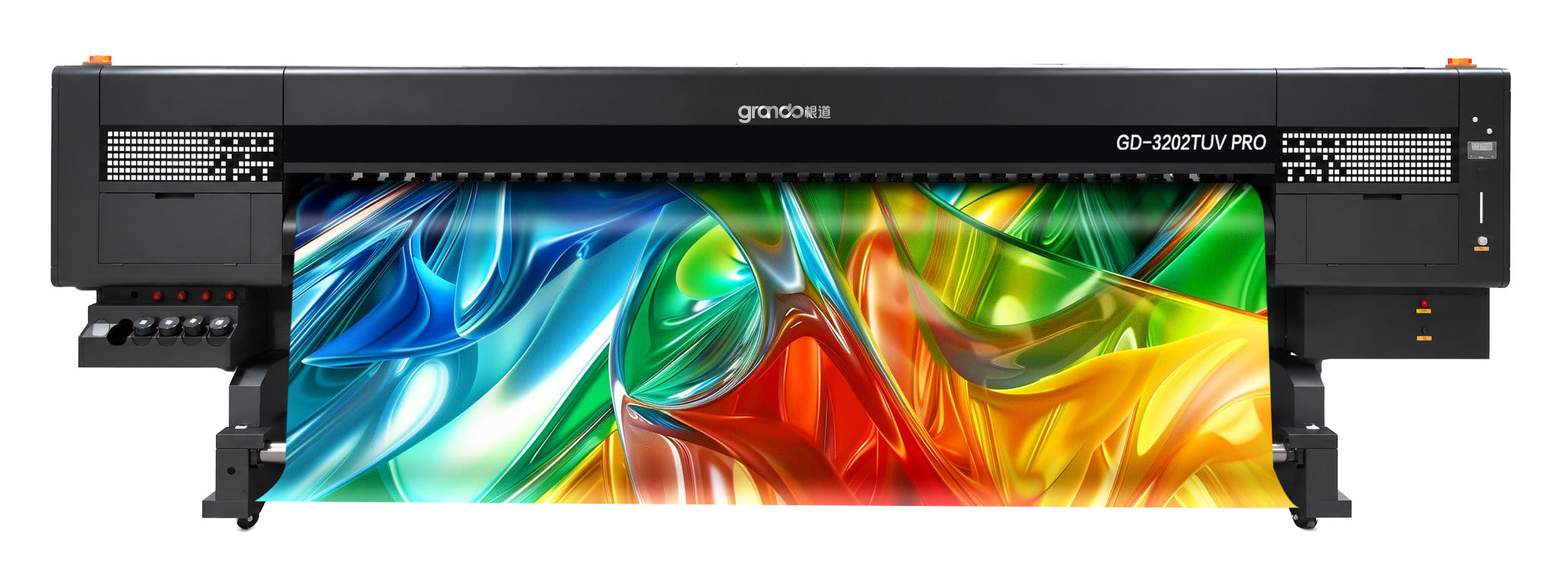

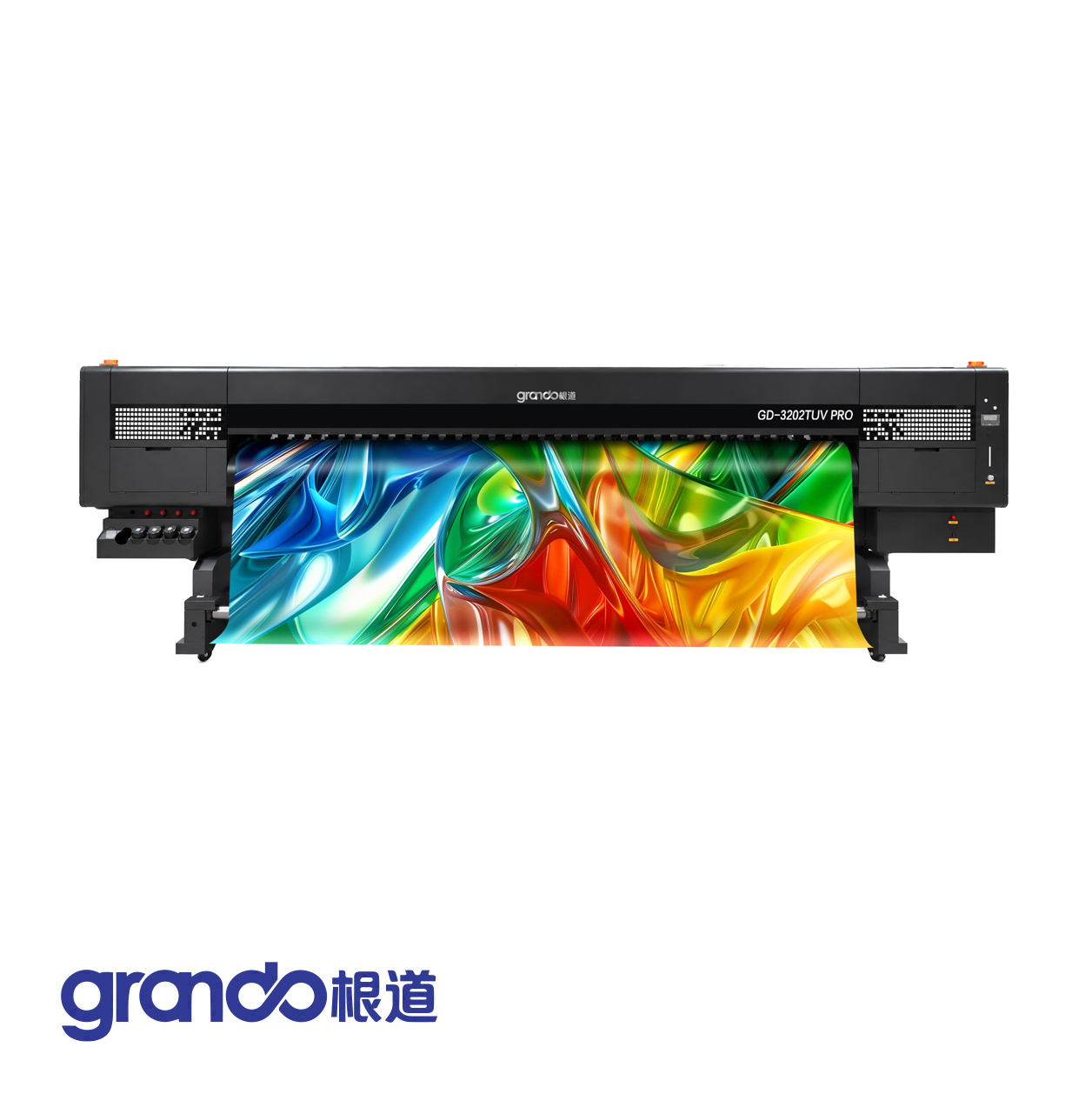

Glossy UV Roll-to-Roll Printer for Printable Banner with Two T3200 Print Heads GD-3202TUV PRO

MODEL : GD-3202TUV PRO
HEAD : Two T3200 Print Heads
PRINTING WIDTH : 125.9 in. (3200mm)
INK : UV Ink
COLOR : CMYK
RESOLUTION : Maximum 2400dpi
Availability:
Quantity:
  • GD-3202TUV PRO

  • grando



微信图片_20260924153734_2128_31

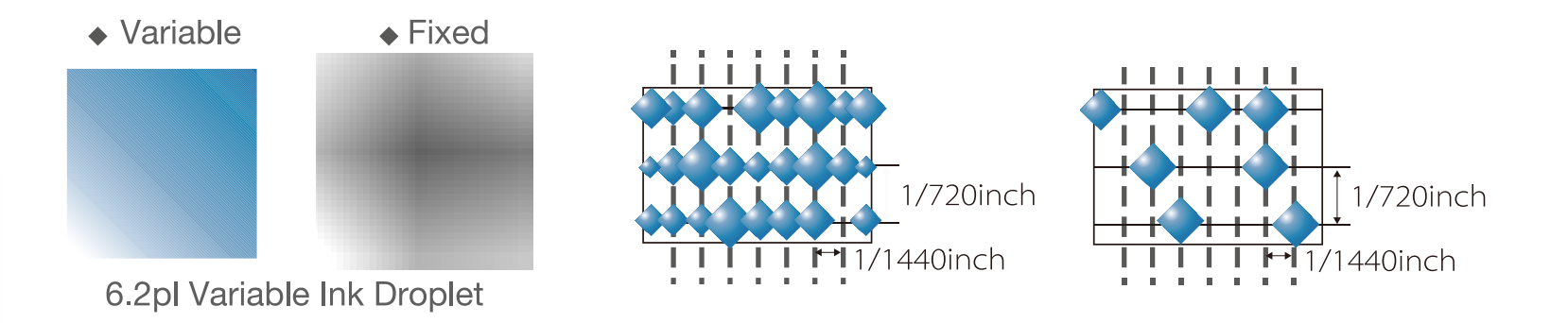

High-speed Micro Piezo Inkjet Printing Technology

Configure 2 T3200 print heads, using advanced board control technology and industrial grade design to ensure the durability of the print heads. Intelligent inkjet printing technology and variable ink droplets ensure perfect printing output and greatly improve printing speed, meeting users' requirements for printing quality and speed.


微信图片_2026-09-30_112204_531


Product Advantages

• Choose between automatic or manual printing settings

• Feed calibration can be used during the printing process

• Choose to control the printer from the computer or printer panel

• Automatic continuous cleaning of ink tubes

• Supports four-color printing with a resolution of 2400dpi

• Stable continuous supply system ensures amazing printing speed

• Humanized intelligent design

• Convenient and intuitive operating interface


High Cost-effective Machine Parameters

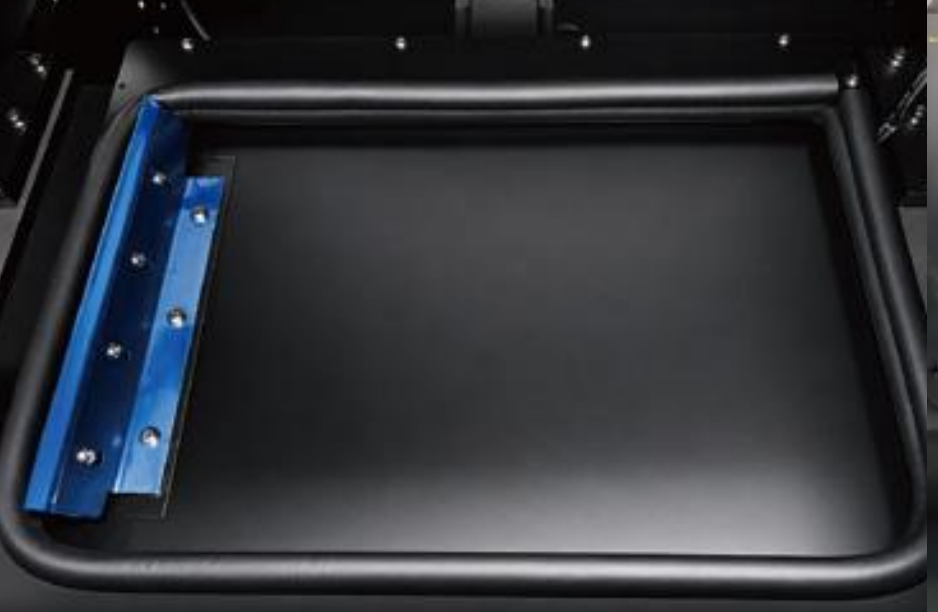

Automatic moisturizing and cleaning components ensure stability during cleaning and operation.

微信图片_2026-09-30_112441_287

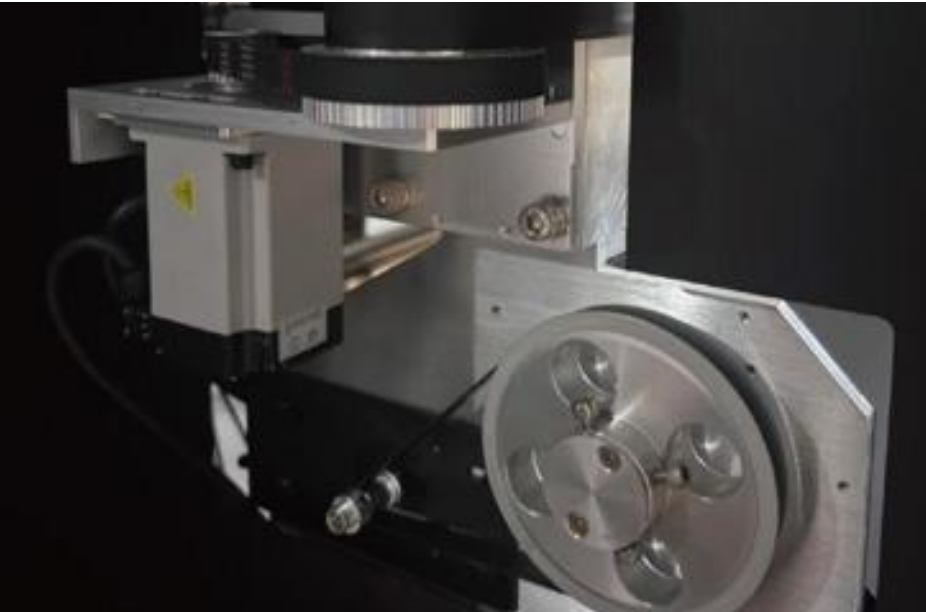

High quality DC servo motor with good stability and long service life.

微信图片_2026-09-30_112456_377

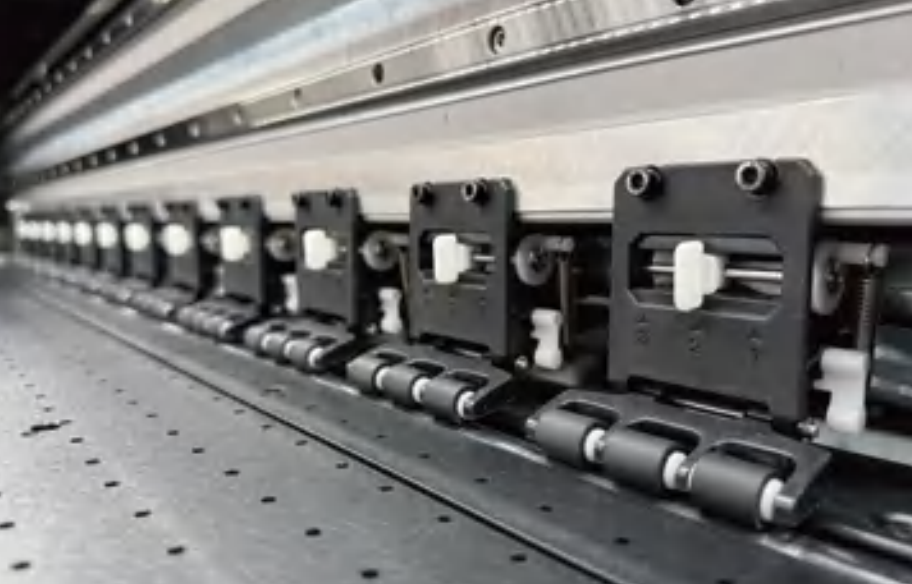

Segmented regulation of three-stage pressure feeding system

微信图片_2026-09-30_112513_314

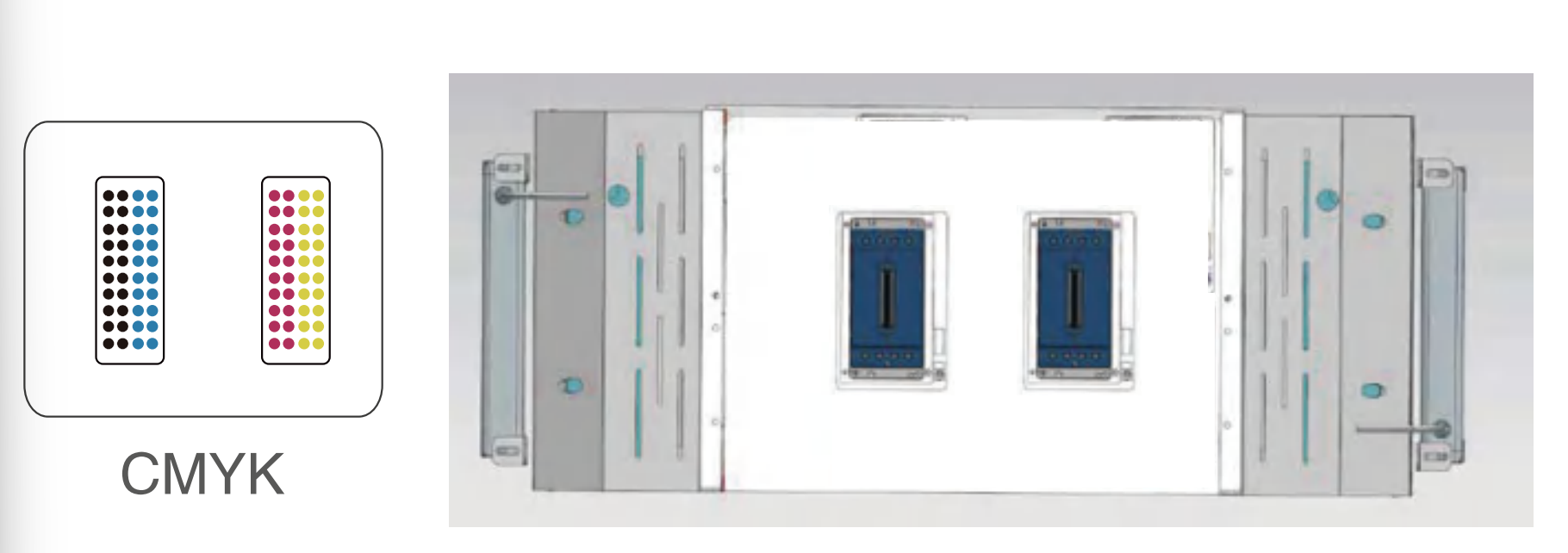

GD-3202TUV PRO printing does not require additional varnish, and only four-color printing can output bright and glossy effects, eliminating the varnish process, simplifying the production process, and improving production efficiency. 微信图片_2026-09-30_112711_690





Model

GD-3202TUV PRO

Print Head

T3200 x 2

Printing   Technology

Micro Piezo Inkjet Printing

Speed

60m²/h

Acceptable   Media Width

3230mm

Acceptable   Media Thickness

1mm

Acceptable   Media Weight

80kg

Print Size

3200mm

Ink Cartridges   Type

UV

Ink Cartridges   Capacity

1.8L large ink bottle

Ink Cartridges   Color

CMYK

Power

2500W

Printing   Resolution

2400dpi

Interface

Gigabit Ethernet

Power Supply

AC220V±10%, 50/60Hz

Media Heating   System

Three-stage Heating System

Net Weight

796kg

Gross Weight   (including accessories and ink)

991.5kg

Packaging   Weight

1171.5kg

Net Size

4855(W)x1070(D)x1900(H)mm

Packaging Size

5100(W)x1300(D)x1925(H)mm

Environment

Power on: Temperature: 15-32°C /   Humidity: 35%-80% (no condensation)

Power off: Temperature: 5-40°C /   Humidity: 20%-80% (no condensation)

Accessories

Stand, Retractable Feeder, Cold air   drying system, Large Ink Supply System, Etc.



微信图片_2026-09-30_112949_815


Applicable Scenarios: UV Banner Fabric.
