GD-4000EUV Pro Color + White & Matte Varnish + Color + Hot Stamping Varnish

MODEL : GD-4000EUV Pro
HEAD : 4pcs i3200-U1 Print Heads
PRINTING WIDTH : 70.8 in. (1800mm)
INK : UV Curing Ink
COLOR : CMYK+ W+ Varnish+ Hot Stamping Varnish / CMYK+ W+ Varnish
RESOLUTION : 720x1200 dpi
Availability:
Quantity:
Inquire Add to Basket

  • GD-4000EUV Pro

  • grando



GD4000EUV Pro-03

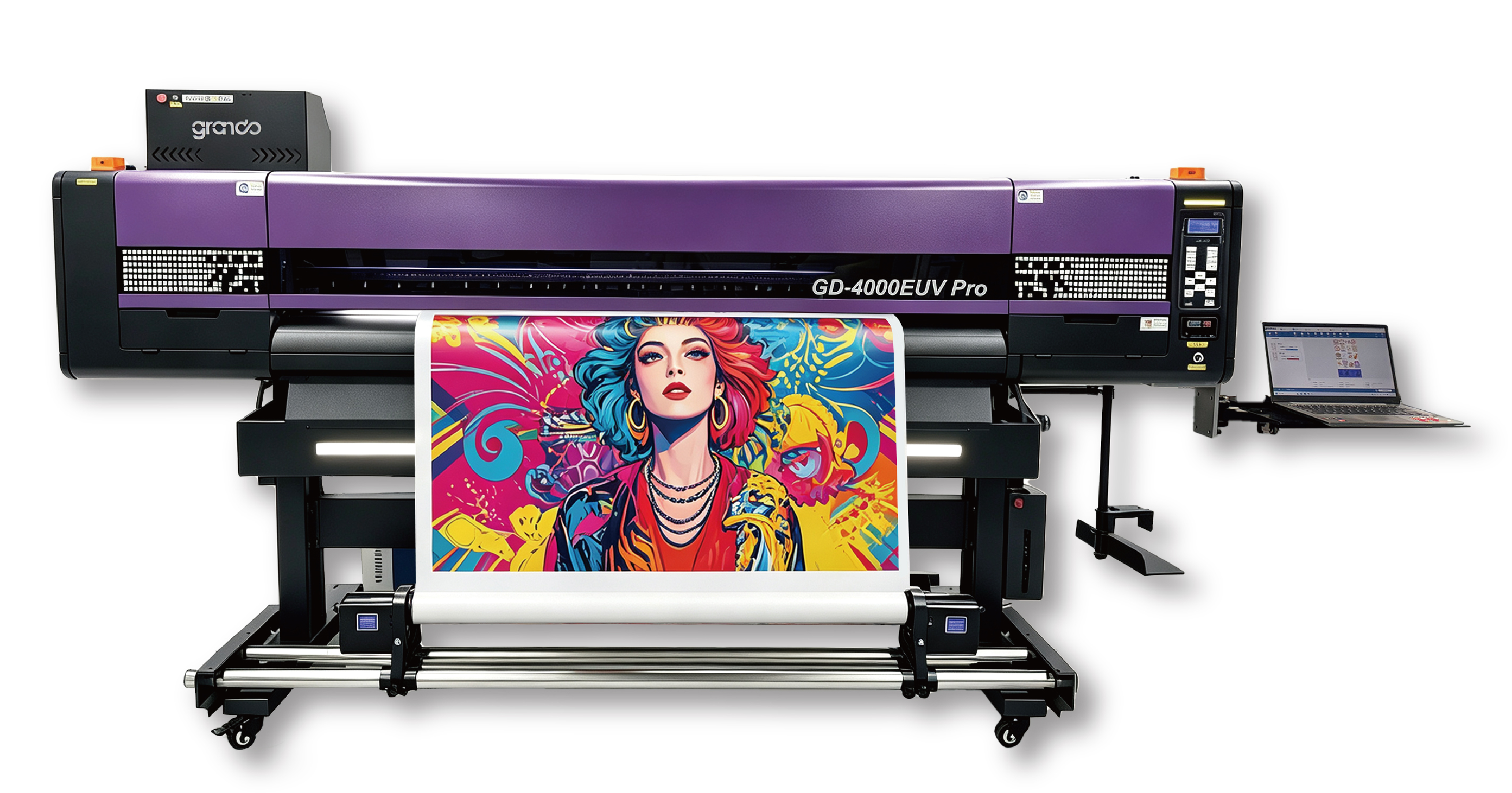

4-Head Configuration

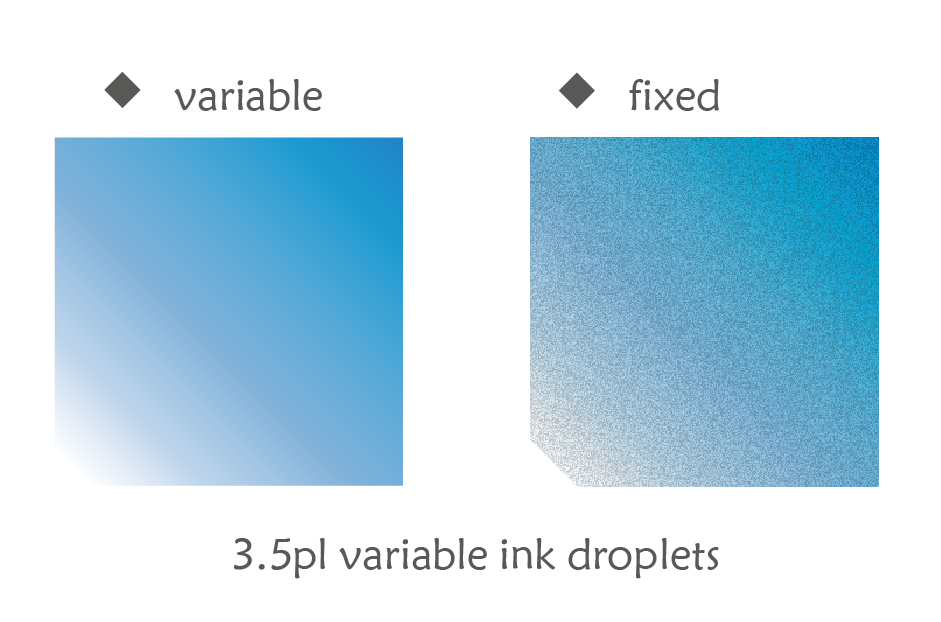

Equipped with 4 pcs Epson i3200-U1 print heads, GD-4000EUV Pro delivers industrial-grade UV printing with 3.5 pl ultra-fine droplets.

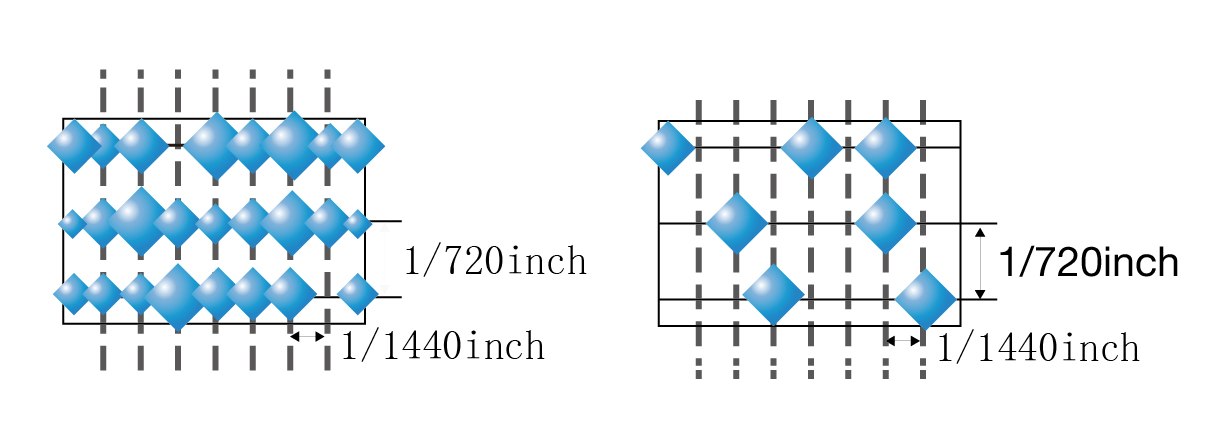

Various printing modes: white, full color, matte varnish, hot stamping, white +color, color + white, color + white + color, color + white + color + matte varnish, color + white + color + matte varnish + hot stamping.Using layered UV printing technology, GD-4000EUV Pro is highly recommended for texture printing with bright colors, strong fastness and special visual effects.

GD4000EUV Pro-04

GD4000EUV Pro-05

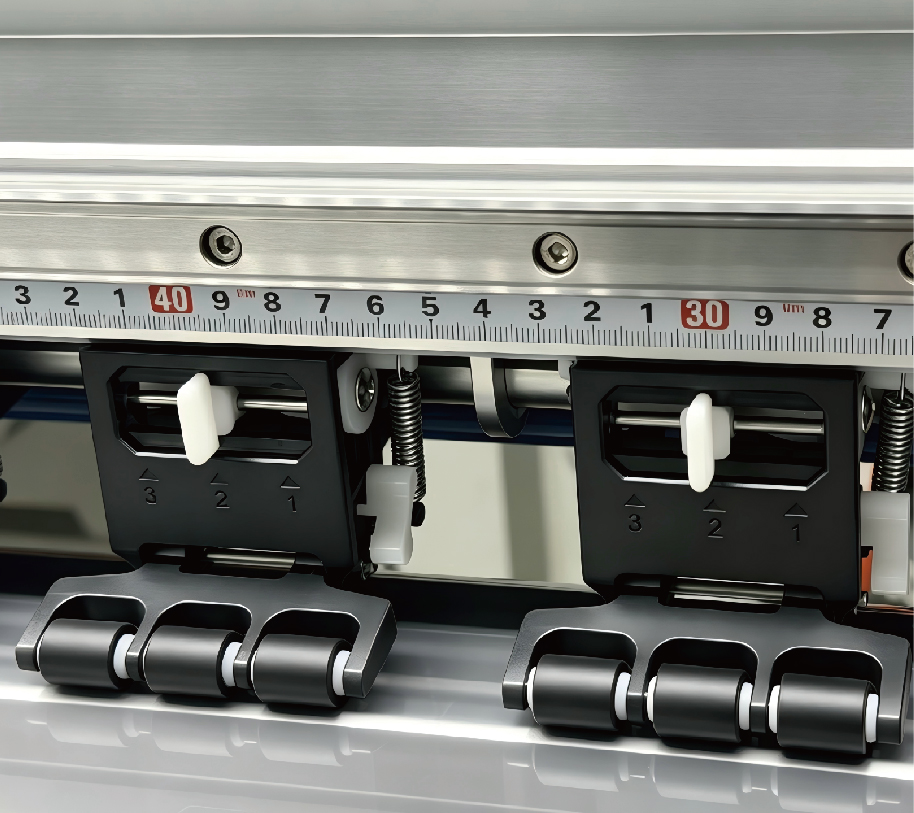

More stable feeding system with triple pinch rollers, three-stage pressure adjustment and independent lifting function.

 GD4000EUV Pro-07

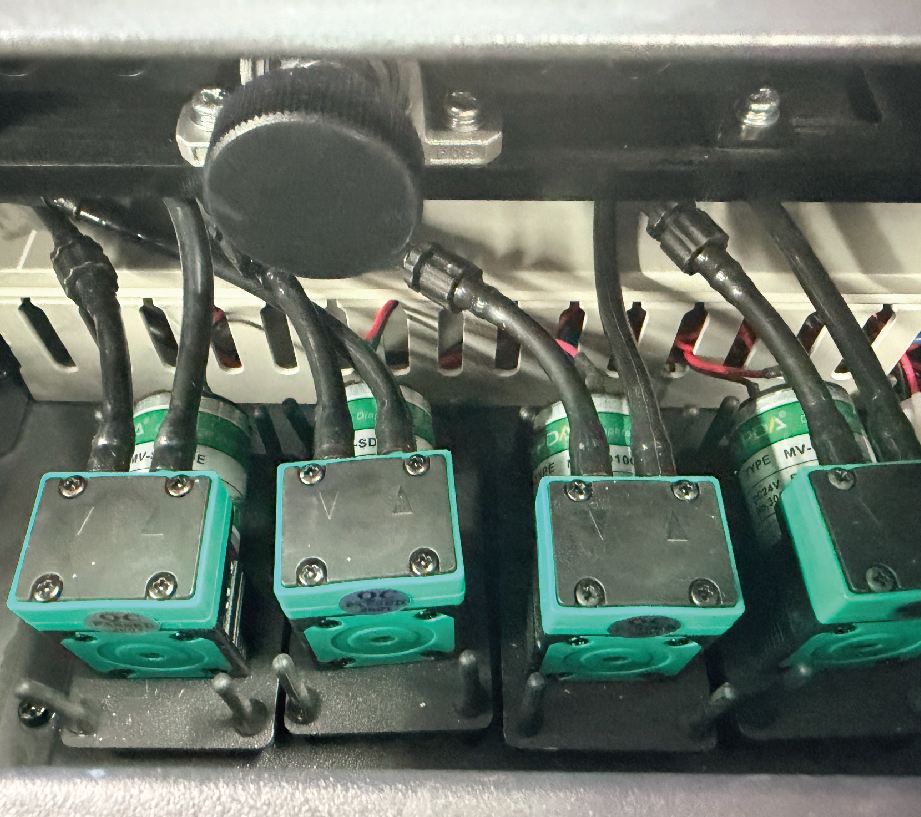

Optimized cleaning ink pump installation and wiring, ink tube layout for tidy look and easy maintenance.

 GD4000EUV Pro-08

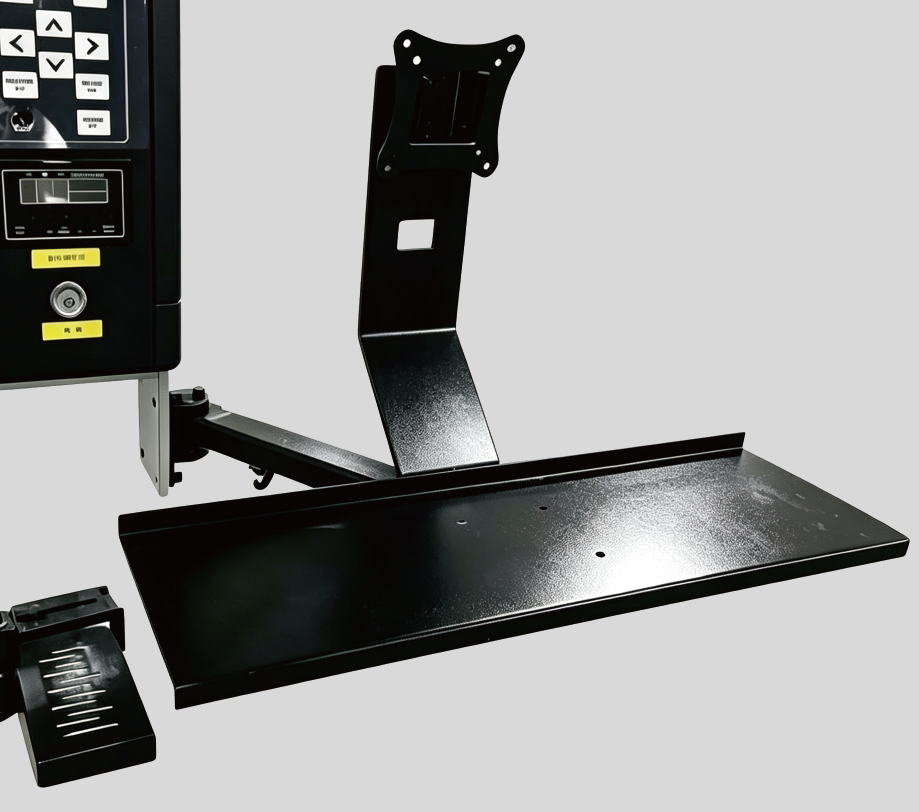

Optional dedicated monitor and PC tower brackets optimize desk layout, save space, boost host heat dissipation and deliver ergonomic office experience.

 GD4000EUV Pro-09

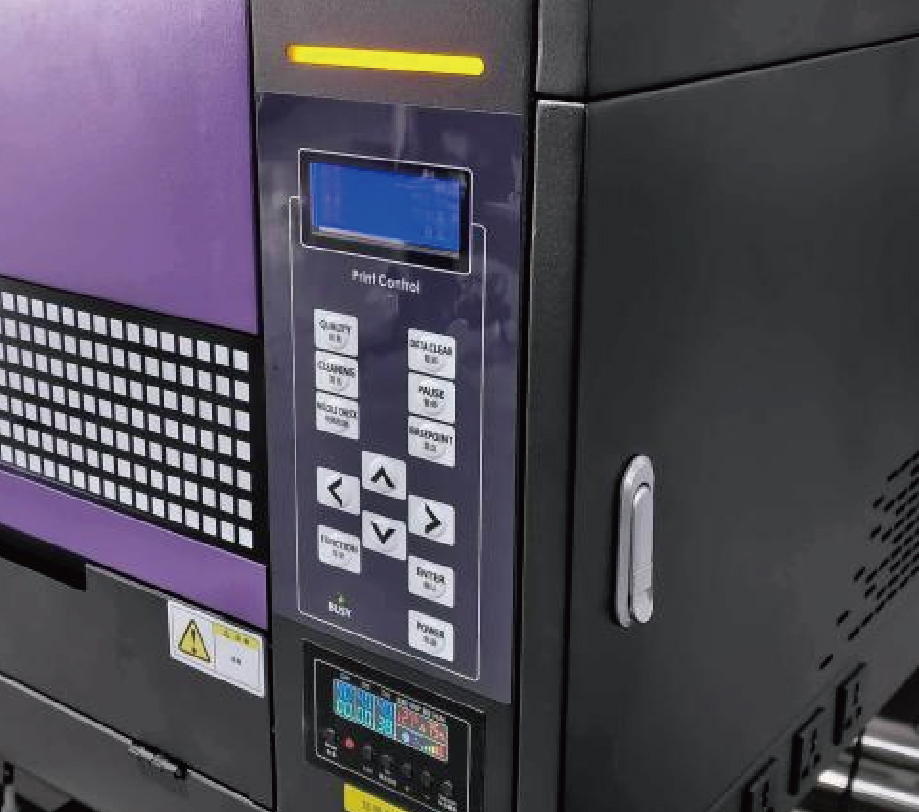

Add tri-color light and alarm buzzer for remote visual check: Red=fault

Yellow=standby  Green=run.

 GD4000EUV Pro-10

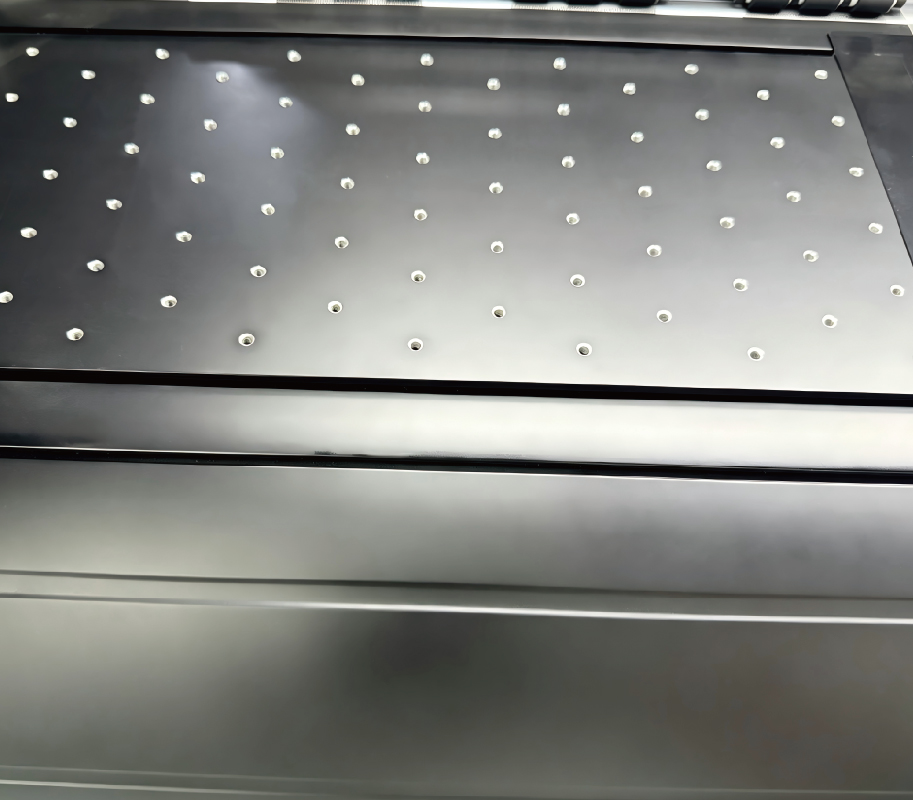

Printing platform and suction system optimized. Wider printing platform plus suction box structure ensures more stable paper feeding.

 GD4000EUV Pro-11

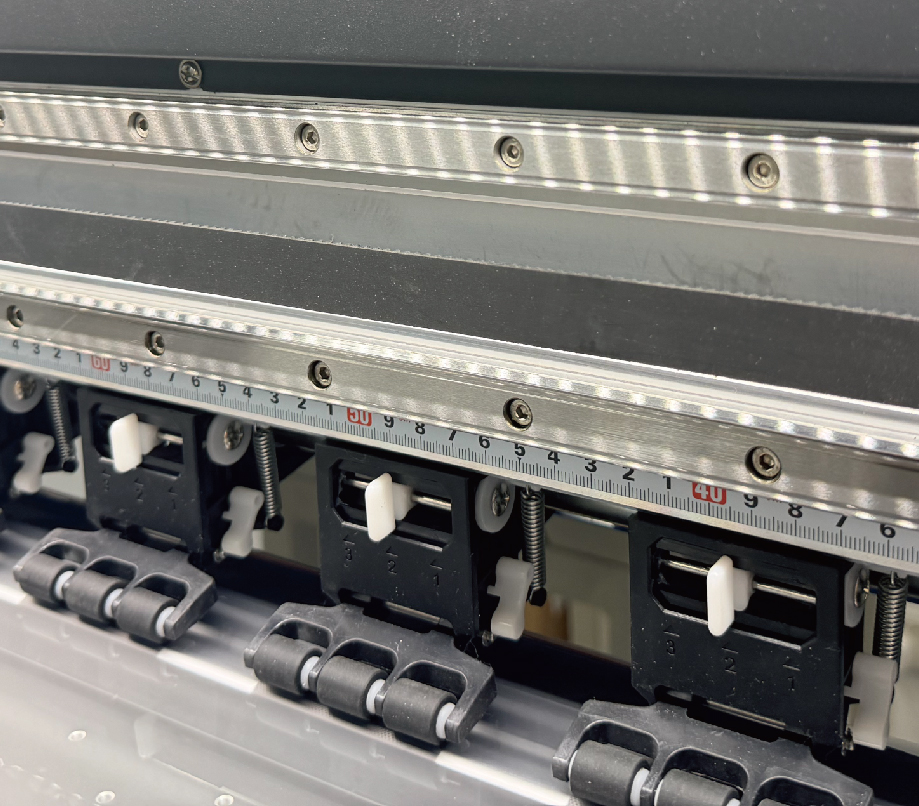

The equipment adopts THK high-precision silent dual linear rails, featuring low vibration, quiet operation and long service life.

 GD4000EUV Pro-12



Technical Specifications


Model

GD-4000EUV Pro

Print Head

4pcs i3200-U1 Print Heads

Printing Technology

Grayscale   piezoelectric inkjet printing

Ink Droplet

3.5pl

Printing Width

210-1750   mm

Printing Speed

6   Pass: 13 m²/h

Acceptable   Media

Width

210-1800   mm

Thickness

≤ 1mm

Weight

132   lb.(60 kg)

Diameter

76.2 mm（3in）or 50.8 mm（2in）

Ink drying

Water cooling led UV light

Ink Cartridges

Type

LED UV

Capacity

1.5L   bulk ink tank (white ink with stirring at intervals)

Color

CMYK+ W+ Varnish+ Hot Stamping Varnish / CMYK+ W+ Varnish

Printing Resolution

720x1200 dpi

Interface

Ethernet   (Gigabit)

Power Supply

AC 220V ± 5%, 16A, 50HZ ±1

Power Consumption

1500W

RIP Software

Photoprint,   RIIN Beidou

Weight

Net   Weight: 425 kg

Gross   Weight: 1137.5 lb.(516kg)

Dimensions(with stand)

126.8(W)   x 32.1(D) x 63.7(H) in.

3221(W)   x 816(D) x 1619(H) mm

Packaging Dimensions

131.8(W)   x 29.9(D) x 40.9(H) in.

3350(W)   x 760(D) x 1040(H) mm

Environment

Power   on

Temperature:   59℉ to 90℉ [15℃ to 32℃] / Humidity: 35 to 80% (no condensation)

Power off

Temperature:   41℉ to 104℉ [5℃ to 40℃] / Humidity: 20 to 80% (no condensation)

Accessories

Stand,Media Loading & Take-up, Water   Cooling System, Bulk Ink Supply System





Applications: glass decals, backlit films, transparent films, car graphics, canvas prints, interior decoration and high-end advertising graphics.


GD4000EUV Pro-2


GD4000EUV Pro.pdf
