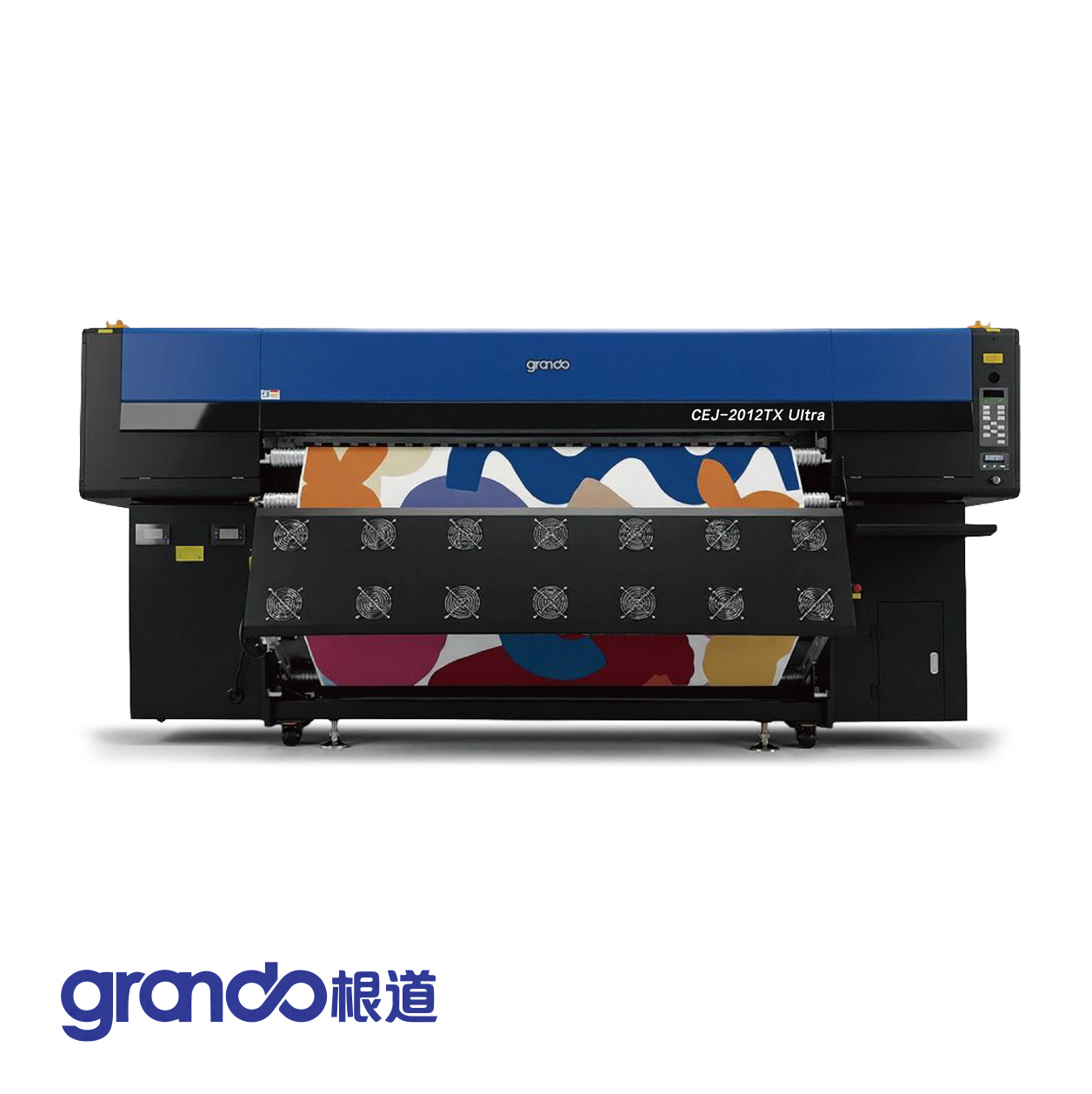

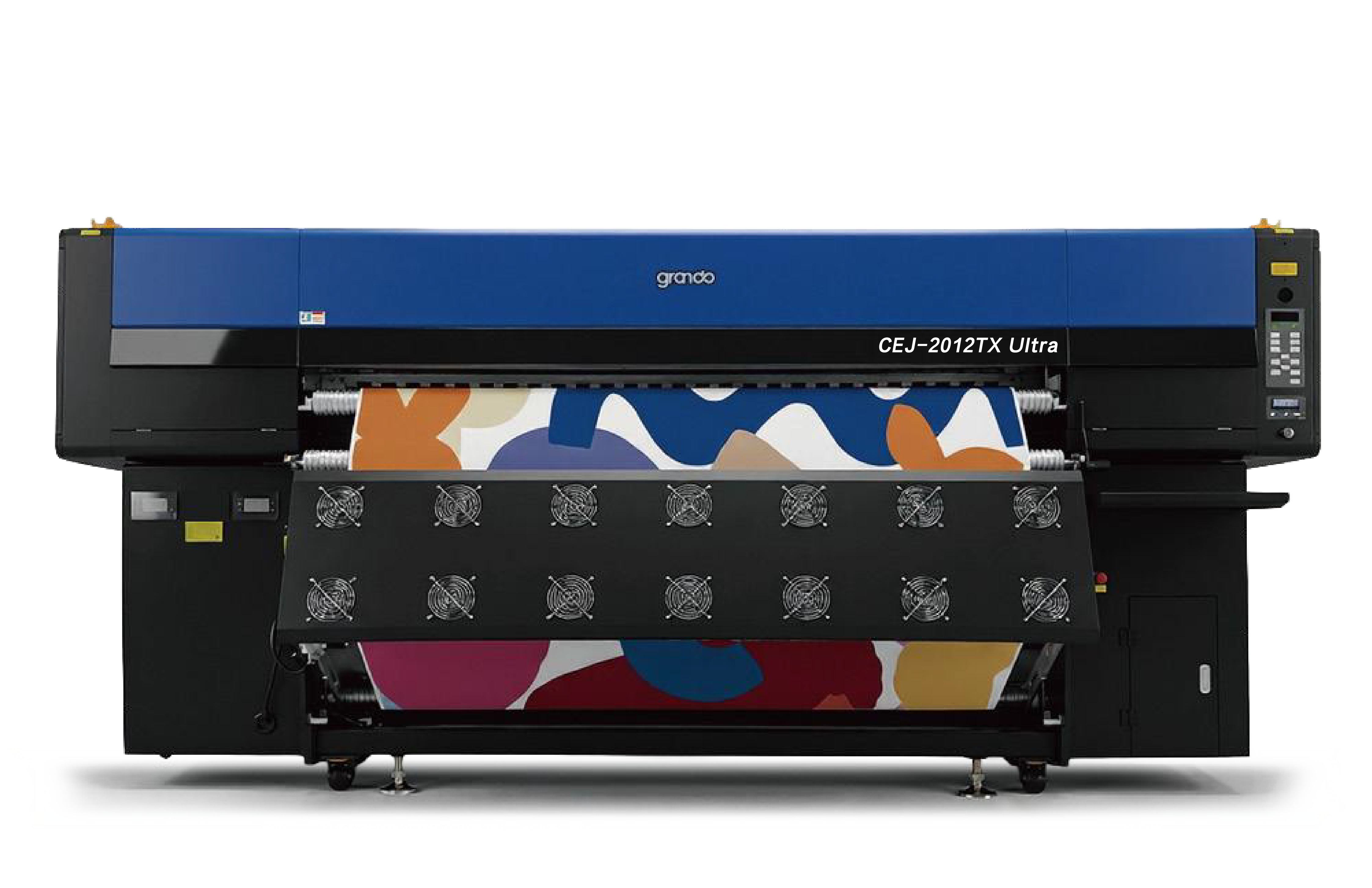

High Speed Digital Industrial Sublimation Printer With Twelve I3200-A1-2 Print Heads CEJ-2012TX Ultra

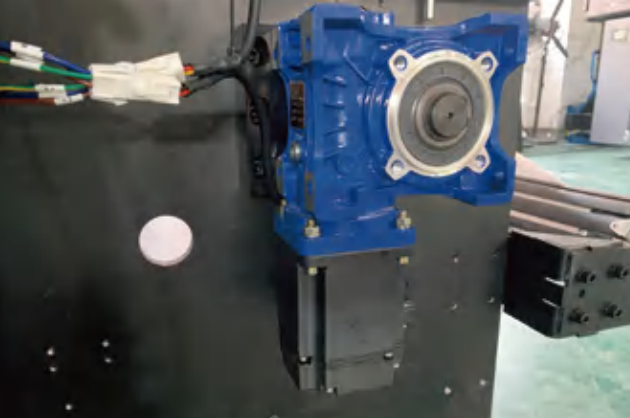

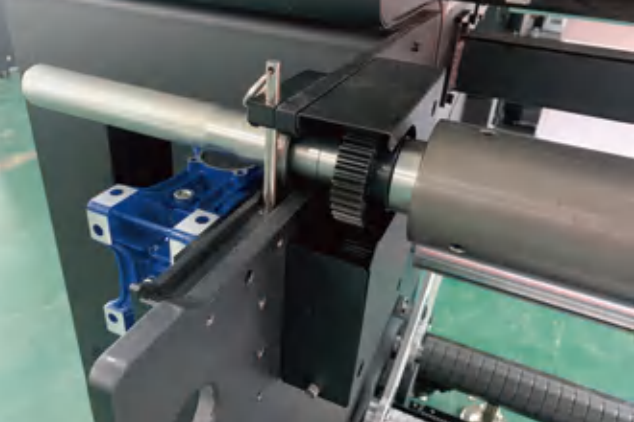

Servo Driven Media Feeding System

Guarantees stable media transport and precise stepping performance.

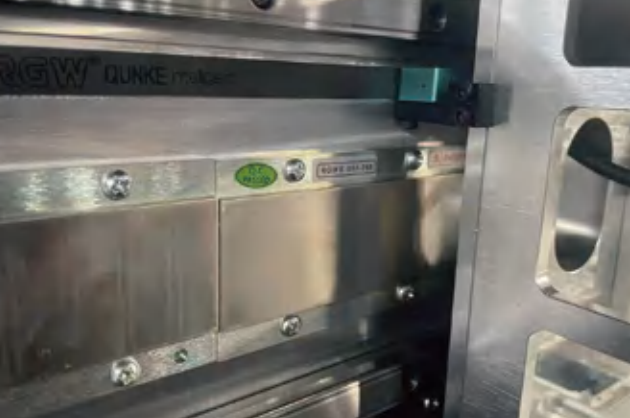

Linear & Magnetic Encoder

Sliding-structure design enables precise carriage positioning and quieter running operation.

Sliding Type Pneumatic Shaft Lock

Sliding-structure design enables easy media loading and unloading.

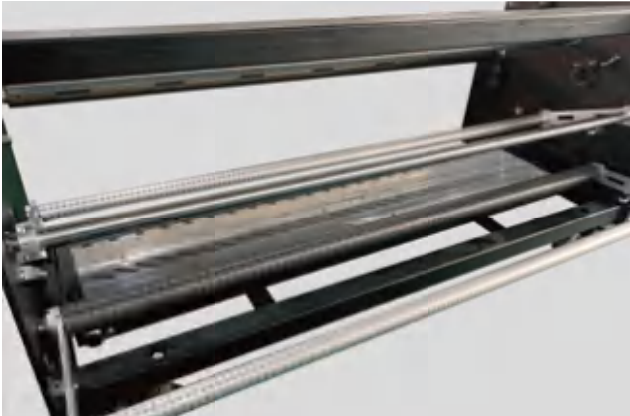

Optimize Swing-Rod Assembly

Improved mechanical stability and running performance.

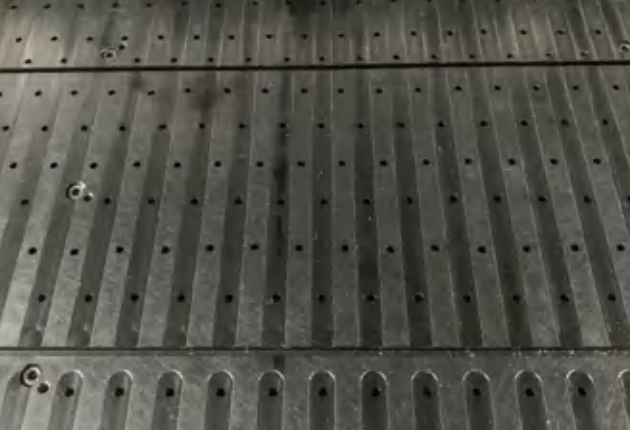

Air-Guiding Vacuum Platform

Vertical air-guiding structure prevents media flutter during printing.

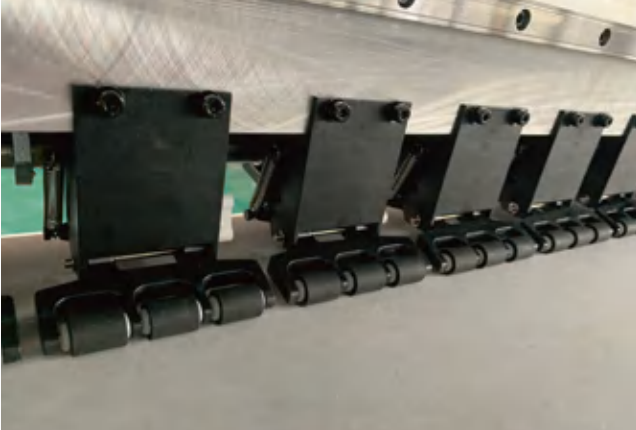

Upgraded Pinch Roller Unit Platform

Enhanced roller material and higher density for even and smooth media feeding.

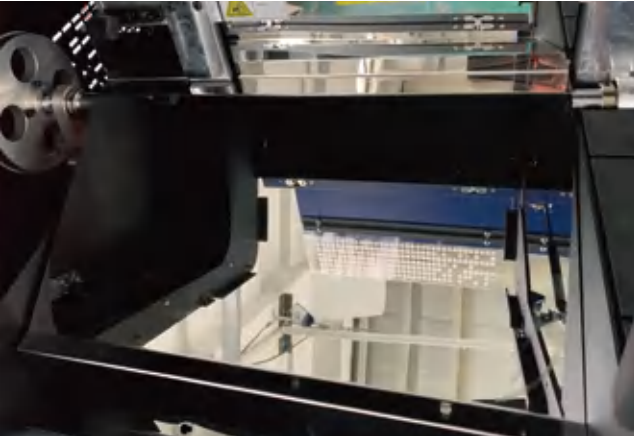

Mirror Baffle Design

Allows easy observation of printing status for convenient maintenance.

Print Head

12PCS Epson I3200-A1-2 Print Heads

Droplet Size

3.5pl

Printing   Technology

Piezoelectric Inkjet

Acceptable   Media Width

2000 (mm)

Type

Heat-transfer Disperse Ink

Ink Cartridges   Color

CMYK / CMYK+LC+LM+LK+LLK / FR, FY, RB,   OR, BR, DG

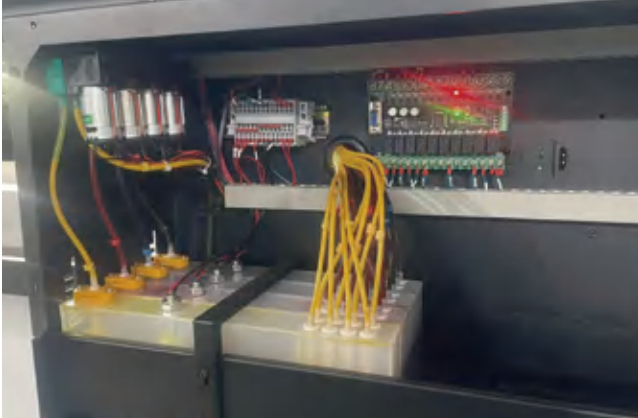

Supply

Siphon ink path system + automatic refill   ink system

Print Media

Heat Transfer Paper

Printing   Resolution

Maximum 3600 dpi

Printing Speed

600 m²/h (CMYK)

Media Loading   and Take-up

Automatic Air Expansion Shaft System

Dryer

External Automatic Air/ Heat Integrated   Dryer

Moisturizing

Automatic Cleaning and Moisturizing   Integrated Unit

RIP Software

RIP, Maintop 6.0, PhotoPrint, ONYX,   NeoStampa, PrintFactory

File Format   Supported

JPG / TIFF / PDF, etc

Interface

USB 3.0

Power

Printing System: 2000W Drying System:   Maximum 10000W

Power Supply

AC 220V ±5%, 16A, 50Hz ±1

Dimensions   (with stand)

149.8(L) × 81.02(W) × 66.14(H) in.

3805(L) × 2058(W) × 1680(H) mm

Environment

Temperature: 59°F to 90°F (15°C to 32°C)   / Humidity: 40-70% RH (No Condensation)

Accessories

External Auto-controlled Hot-air   Integrated Dryer System, Low-Ink Alert, Dual-Shaft Media Handling, Automatic   Head Moisturizing & Cleaning
